Distributor For:

Gaskets and Gasket Sheet Material

San Diego Seal, Inc. is a stocking distributor of a wide range of gasket sheet material including, Non asbestos, High Temperature Compressed Sheet , Flexible Graphite, Expanded TeflonŽ, Neoprene, EPDM, Silicone, VitonŽ, Nitrile and more. We offer standard commercial grade materials, as well as specification grade materials that meet ASTM, FDA and Mil-Spec requirements.

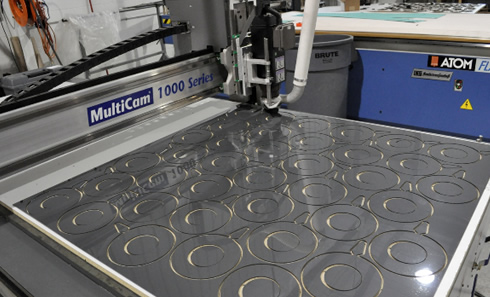

We manufacture a full line of ANSI B.16.1 ring and full face flange gaskets for both Navy and Commercial drill flanges. As well as custom made gaskets utilizing a variety of production and material options to solve even the most challenging sealing applications. Our production capabilities include die cutting, splicing, and hand fabrication.

San Diego Seal, Inc. stocks a full line of spiral wound (flex) and metal gaskets.

For product details and technical specifications, download the Adobe PDF file(s) below:

[796 KB]

Quick Reference Guide

(Gaskets and Gasket Materials)

[440 KB]

Gaskets


  • Pre-Cut
  • Die Cut

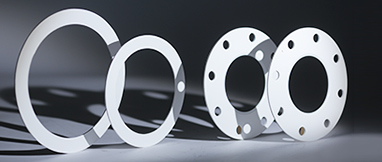

  • Full Face Gaskets - Commercial and Navy Drill
  • Ring Gaskets
  • Custom Cut to Customers Specifications
  • Low Cost Tooling

[2.5 MB]

Non Asbestos and Other Compressed Sheet


  • Mil Spec Non Asbestos (Meets Mil-G-24696)
  • Standard Grade Non-Asbestos
  • Premium Grade Non-Asbestos
  • High Temperature Carbon Fiber
  • Thermiculite®
  • PTFE (Teflon®)
  • Expanded PTFE (Teflon®)
  • Filled PTFE (Teflon®)
  • Vegetable Fiber
  • Felt


[2.2 MB]

Flexible Graphite Material


  • Flexible Graphite
  • Flexible Graphite with Stainless Steel Foil Insert
  • Flexible Graphite with Tanged Stainless Steel Insert
  • Pyro-Tex Graphite Woven Sheet
  • Pyro-Tex Graphite Joint Sealant
  • Grafkote®-Polymer Laminated Flexible Graphite


[1.9 MB]

Metallic and Semi-Metallic Gaskets

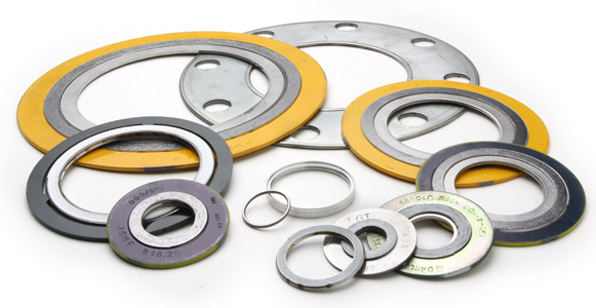

  • Spiral Wound with Outer Ring (Flex Gasket)
  • Spiral Wound
  • Graphite with Corrugated Metal Core
  • Dyna-Core®-Expanded Teflon® with Corrugated Metal Core
  • Corrugated Metal
  • Metal Jacketed

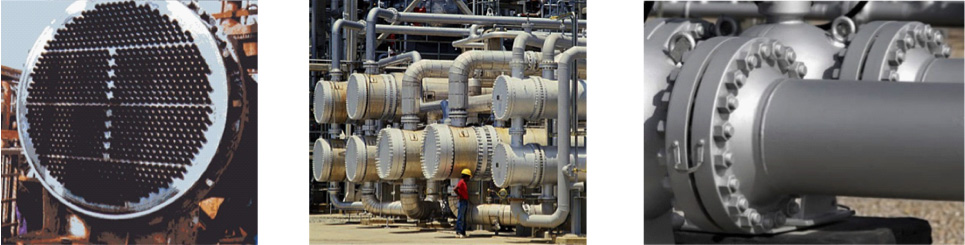

  • Heat Exchanger Gaskets


[1.0 MB]

Rubber Materials


  • Neoprene

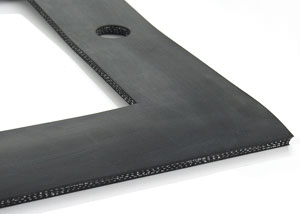

  • Cloth Inserted Rubber
  • Nitrile (Buna-N®)
  • EPDM
  • Viton®
  • Silicone
  • Red Rubber
  • Closed Cell Sponge
  • Open Cell Sponge
  • Cork and Rubber

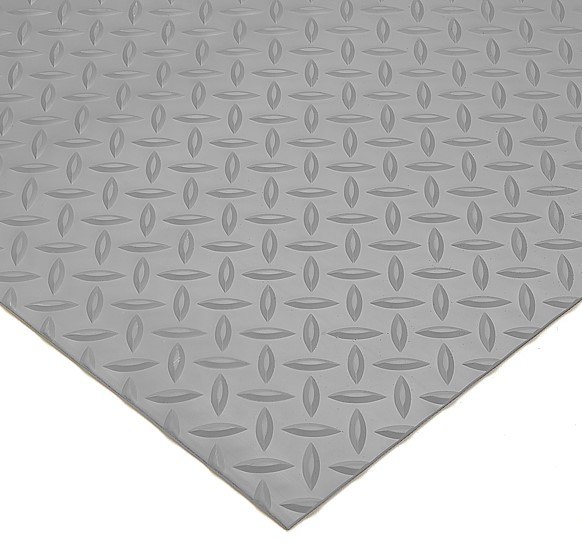

  • Floor Matting
